Curved rack double break electrical switch panel with LED indicator for water heater and air conditioner circuits

This high-current electrical switch panel is designed specifically for circuits requiring reliable connection and disconnection under substantial electrical loads. With its double-break mechanism and integrated LED status indicator, it provides both enhanced safety and clear visual confirmation of circuit state. Available in two current ratings and three colour finishes, it caters to various installation requirements while maintaining consistent performance standards across all variants.

Features and Construction

The switch incorporates several design elements focused on safety, visibility, and installation flexibility within electrical distribution systems.

Material and Build

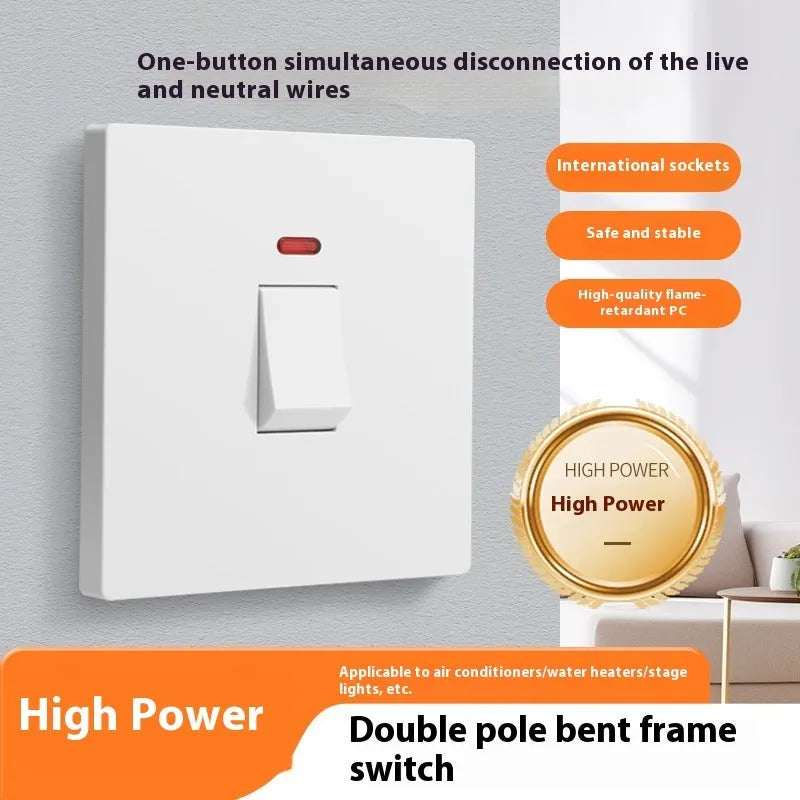

Constructed with a plastic housing that provides electrical insulation and physical protection for the internal components. The housing material accommodates the curved rack design, which allows for integration into specific switchboard configurations. Metal contacts within the switch are rated for the specified current carrying capacity, with the double-break design ensuring simultaneous disconnection of circuit paths.

Size and Practical Fit

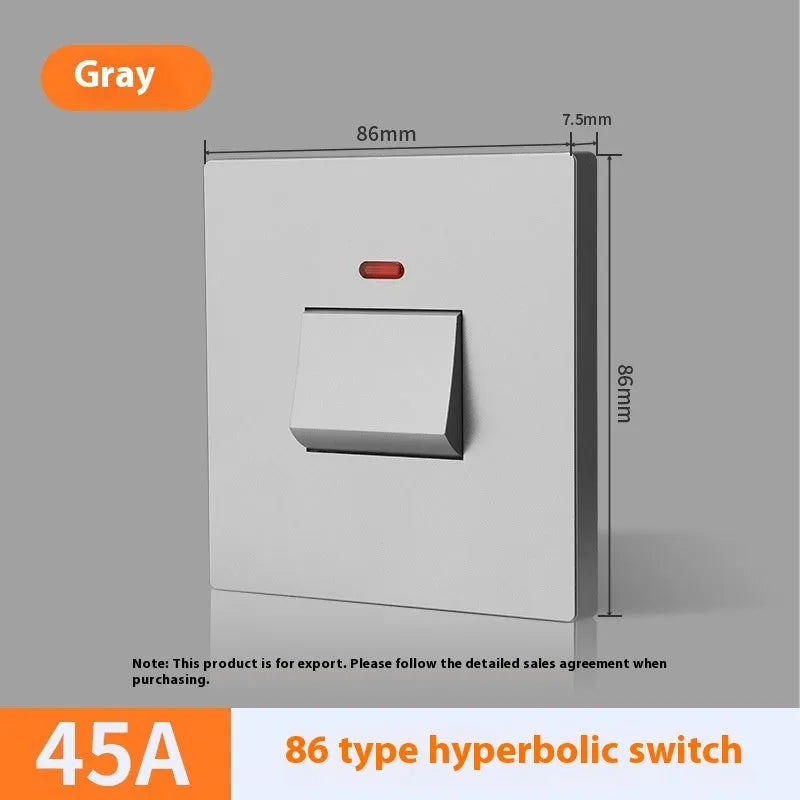

With a weight of 128g, the switch maintains a manageable size for installation in standard electrical enclosures. The curved rack design indicates compatibility with particular switchboard systems rather than flat panel arrangements. The 3-pole configuration provides comprehensive circuit isolation by switching all conductors simultaneously, which is particularly relevant for higher-power applications.

Uses and Placement

The switch's specifications make it suitable for specific electrical applications where both current capacity and safety features are important considerations.

Event or Professional Use

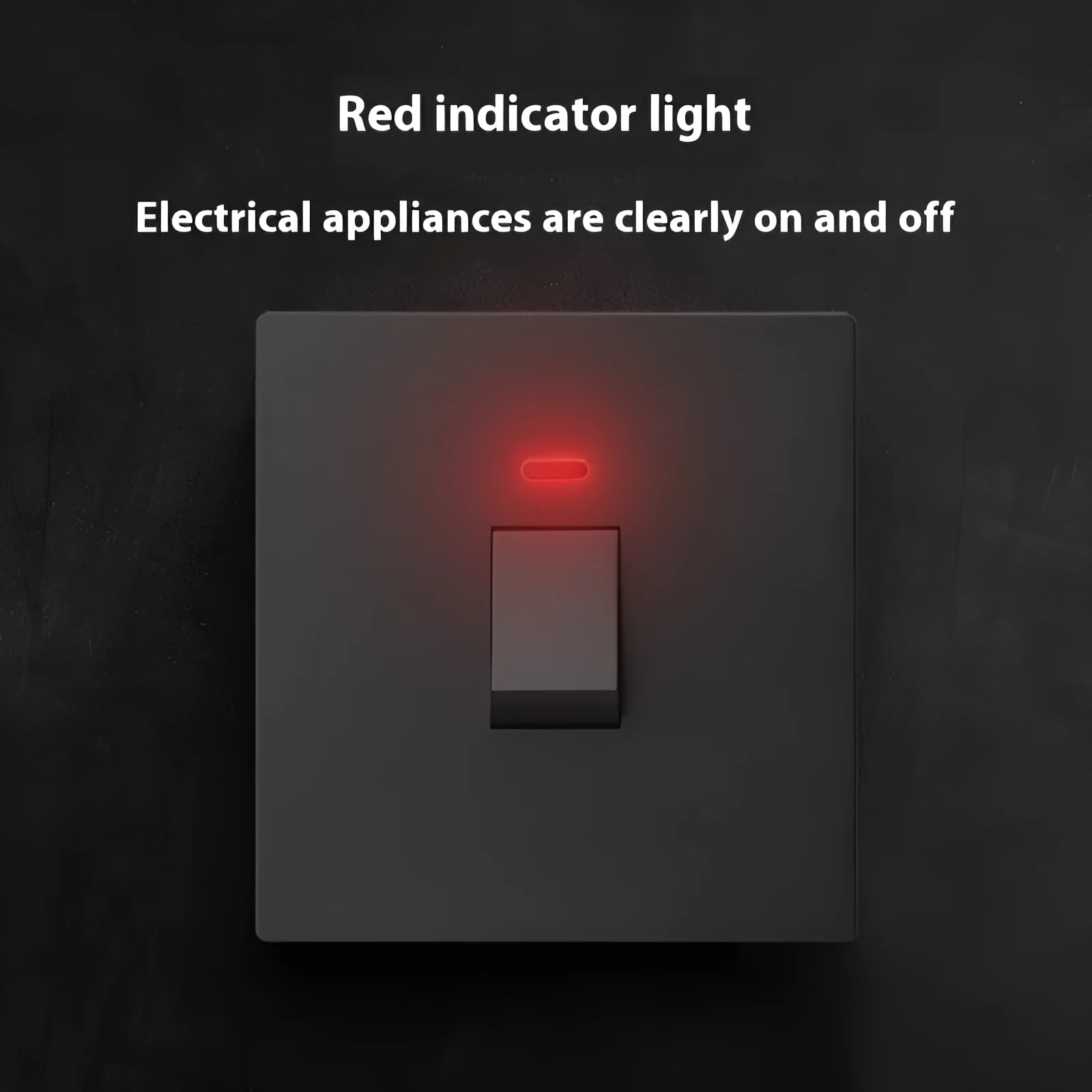

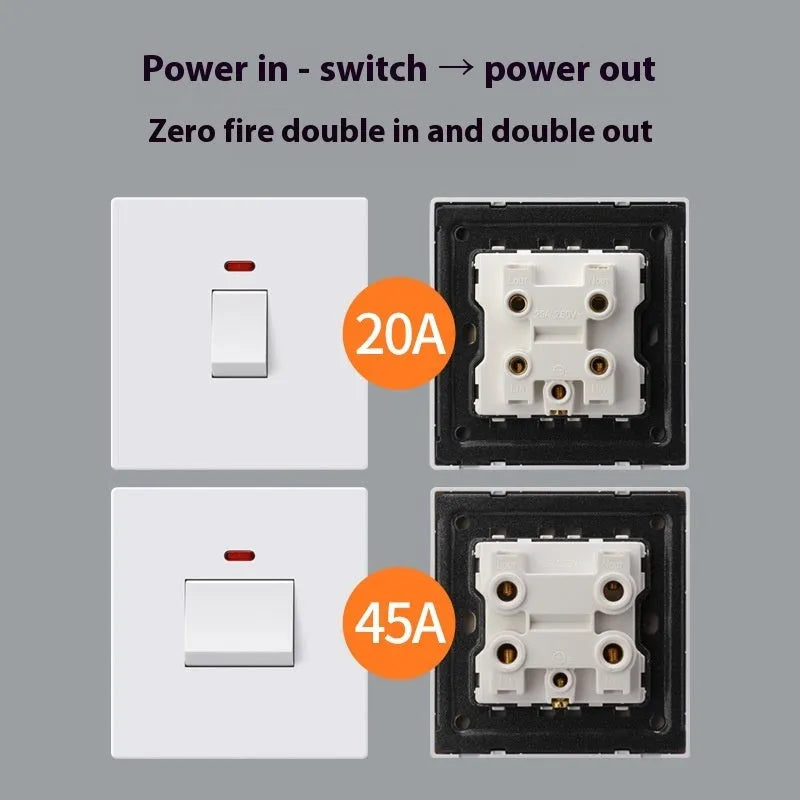

In commercial or industrial settings, this switch can be incorporated into distribution boards controlling multiple high-power appliances. The 45A version handles particularly demanding circuits, while the LED indicator provides immediate status confirmation from a distance. Installation in equipment control panels or dedicated appliance circuits represents typical professional applications.

Everyday Home Use

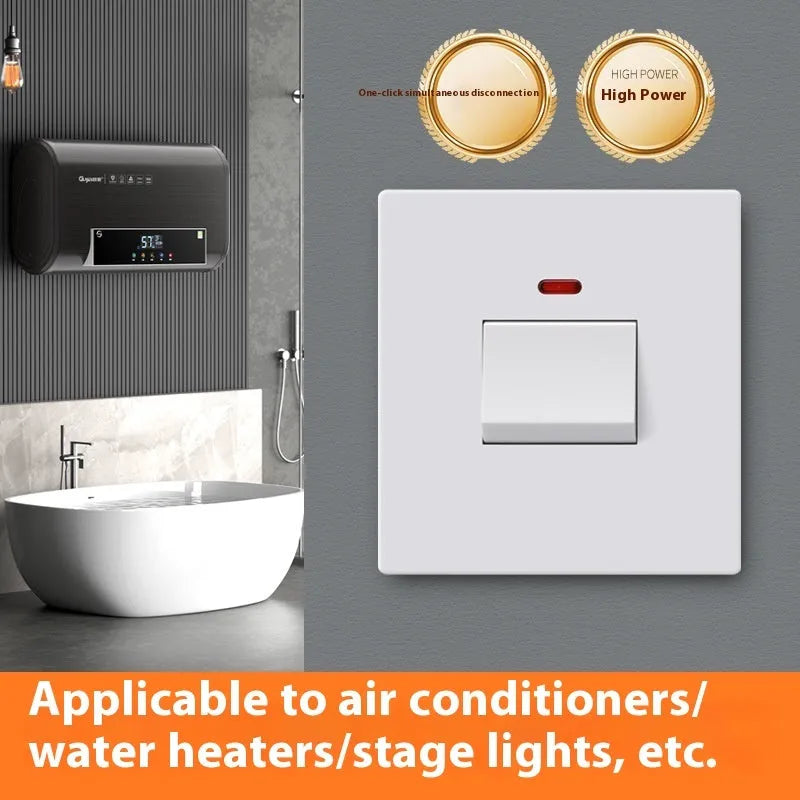

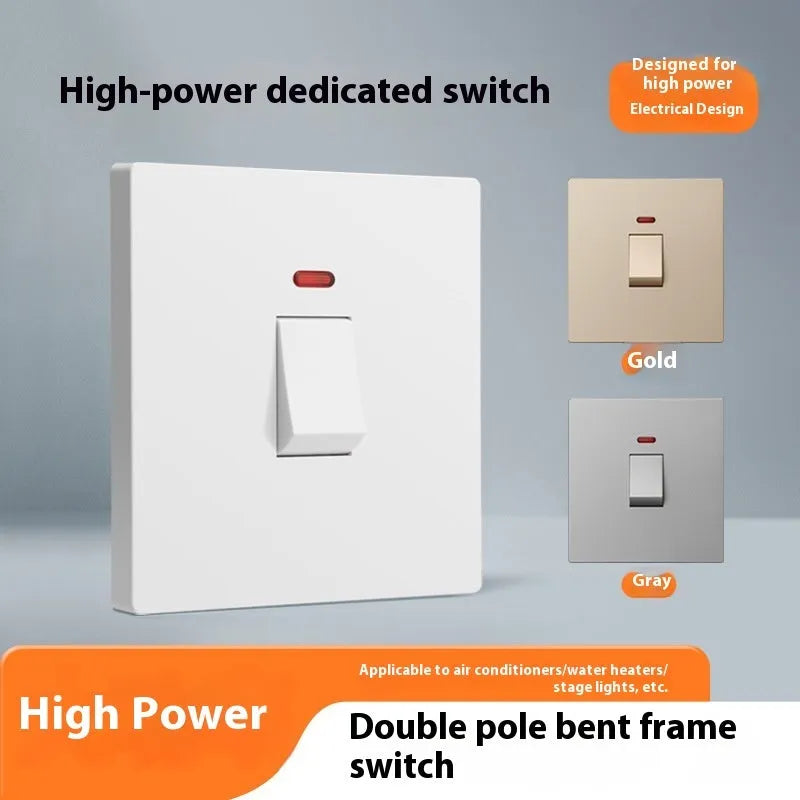

For residential installations, the 25A version provides adequate capacity for water heaters, air conditioning units, and other substantial household appliances. The colour options allow for coordination with different interior aesthetics, with gold, grey, and white finishes offering varying levels of visual prominence. Home electrical panels with dedicated appliance circuits benefit from the clear status indication.

Benefits and Buying Value

The switch offers practical advantages through its specific design features and configuration options.

Reuse and Low Maintenance

The double-break mechanism contributes to switch longevity by reducing arcing during disconnection, which can degrade contacts over time. The plastic housing resists corrosion and maintains insulation properties throughout typical service life. No specialised maintenance is required beyond occasional inspection as part of broader electrical system checks.

Why Choose This Product

This switch provides a balanced combination of safety features, clear status indication, and installation flexibility. The availability of two current ratings allows for appropriate specification matching without over-engineering. The three colour options accommodate different installation environments without compromising electrical performance. For circuits powering water heaters, air conditioners, or similar appliances, it offers reliable operation with visual confirmation of switch state.
