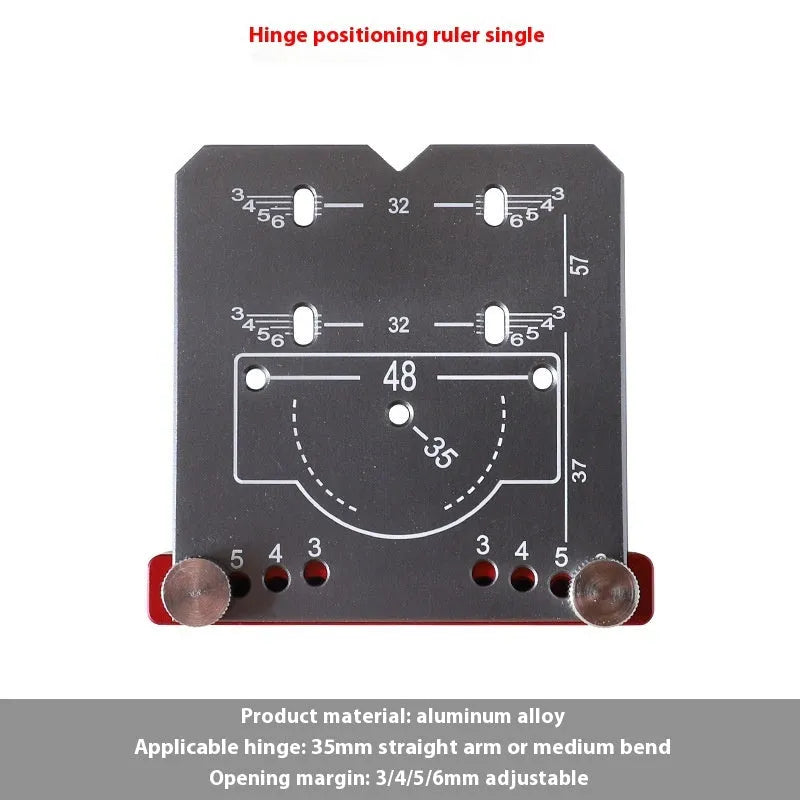

35mm Hinge Punch Locator: Adjustable Margin Marking Tool for Cabinet Door Installation

Installing hinges accurately on cabinet doors, wardrobes, and furniture pieces requires precision that can be difficult to achieve freehand. This hinge punch locator provides a reliable solution for home woodworking enthusiasts and DIYers. Made from aluminium alloy with a hard alloy blade, this tool is specifically designed for 35mm extended arm and middle bend hinges. The adjustable margin settings allow you to customise the installation to your specific project needs, ensuring professional-looking results without specialist tools or extensive experience.

Features and Construction

This hinge locator combines practical design with durable materials to create a tool that simplifies a common woodworking task. The construction focuses on providing accurate guidance while withstanding repeated use in home workshop environments.

Material and Build

The main body of the hinge locating rule is constructed from aluminium alloy, offering a balance of lightweight handling and sufficient rigidity for precise marking. The limit tapper component features a hard alloy blade that has undergone high-temperature heat treatment. This process enhances the blade's hardness, making it both sharp for clear marking and resistant to wear over time. The combination of these materials creates a tool that can withstand the demands of multiple furniture projects.

Size and Practical Fit

The tool is specifically designed for 35mm hinges, which are commonly used in cabinet door and wardrobe installations. This standardised sizing ensures compatibility with a wide range of furniture hardware available on the market. The adjustable nature of the tool allows it to accommodate different installation requirements through its selectable margin settings of 3mm, 4mm, 5mm, or 6mm. This flexibility makes it suitable for various cabinet styles and door thicknesses found in typical home DIY projects.

Uses and Placement

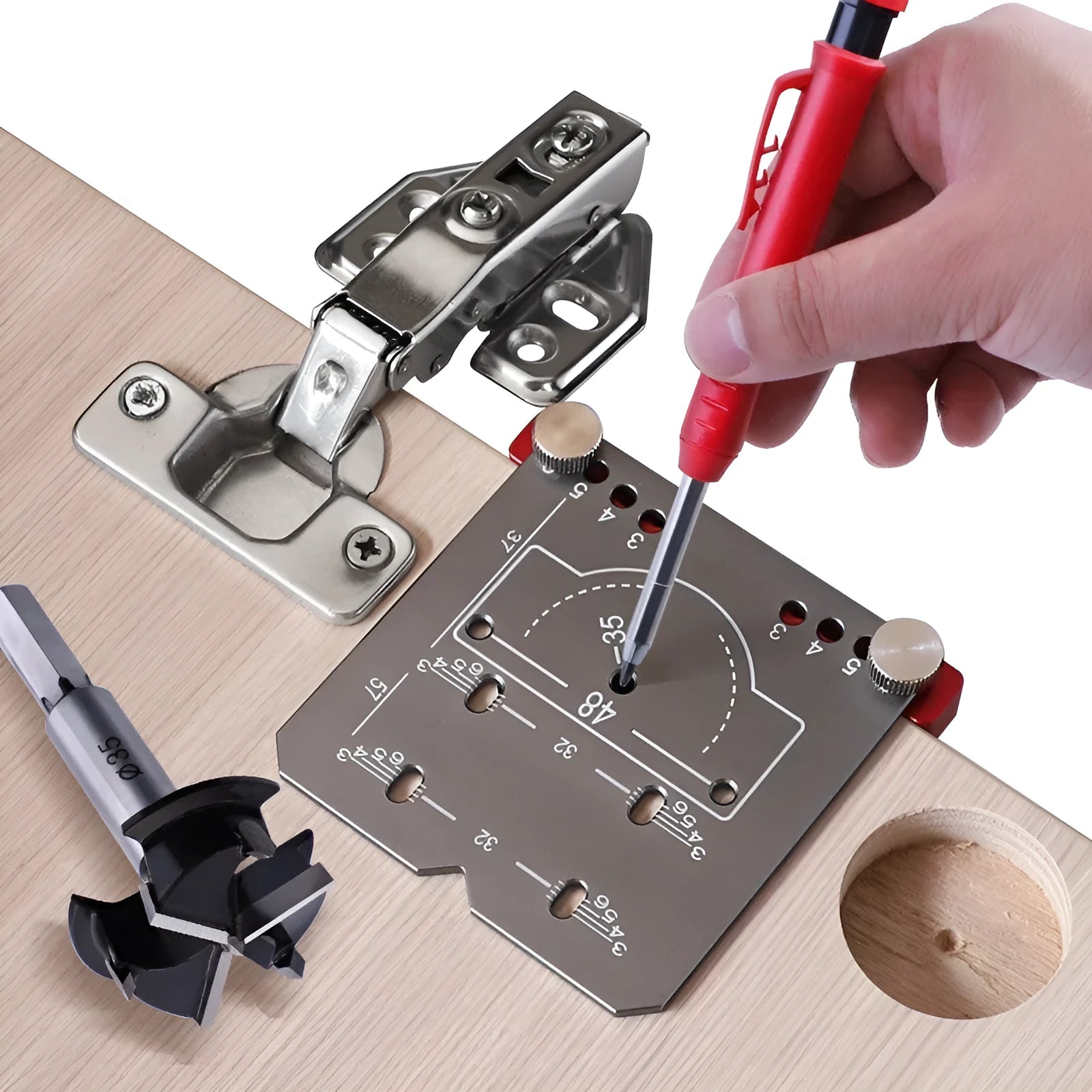

This hinge punch locator serves primarily as a positioning and marking guide for hinge installation. Its straightforward operation makes it accessible to users with different skill levels, from beginners undertaking their first furniture project to experienced DIYers looking for time-saving tools.

Event or Professional Use

While designed for household use, this tool can support small-scale furniture assembly or repair tasks that might occur in various settings. The precise margin adjustment allows for consistent hinge placement across multiple cabinet doors, which is particularly valuable when installing kitchen cabinets, built-in wardrobes, or bathroom vanity units. The hard alloy blade creates clean, accurate marks that serve as reliable drilling guides, reducing the risk of misaligned hinges that can cause doors to hang improperly or bind against frames.

Everyday Home Use

For typical home improvement projects, this hinge locator simplifies what can otherwise be a frustrating and imprecise task. Whether you're installing new cabinets in a kitchen renovation, adding storage wardrobes to bedrooms, or repairing existing furniture, the tool provides a methodical approach to hinge placement. The adjustable margins mean you can match existing hinge positions when replacing doors or create new installations with consistent spacing. The tool's design focuses on practical operation without requiring complex setup or calibration.

Benefits and Buying Value

Choosing this hinge punch locator offers practical advantages for anyone undertaking furniture assembly or repair work. The value comes from its ability to improve accuracy while reducing the time and potential errors associated with hinge installation.

Reuse and Low Maintenance

The durable aluminium alloy and hard alloy blade construction means this tool can be used across multiple projects over time. Unlike disposable marking methods, this locator provides a reusable solution that maintains its accuracy with proper care. The wear-resistant blade maintains its marking capability through repeated use, and the simple design has no complex mechanisms that might require adjustment or replacement parts. Cleaning the tool after use and storing it properly will maintain its condition for future projects.

Why Choose This Product

This hinge punch locator addresses a specific need in woodworking and furniture assembly with a focused, practical solution. The adjustable margin settings provide flexibility for different installation requirements, while the specialised design for 35mm hinges ensures compatibility with common hardware. The combination of aluminium alloy and hard alloy blade offers durability appropriate for home workshop use. For DIYers looking to achieve professional-looking hinge installations without investing in extensive specialist tools, this locator provides a targeted solution that improves accuracy and consistency in cabinet door fitting.
