High-Power Musical Tesla Coil Driver Board for 220V Plasma Arc Demonstrations

This Solid State Tesla Coil (SSTC) driver board is engineered for enthusiasts, educators, and demonstrators seeking a robust and accessible platform for high-voltage plasma arc experiments. It transforms audio signals into a stunning visual spectacle of dancing electrical arcs, synchronising lightning-like discharges directly to music. Designed for practical use, it eliminates the traditional requirement for an installed ground cable by connecting directly to a standard 220V AC mains socket. With an average power output of 250W and a capacity of 200VA, it is capable of generating impressive arcs up to 20 cm in length, all controllable via the included potentiometer-based controller. Its integrated safety systems and compact, portable design make it a compelling choice for science demonstrations, educational workshops, or striking visual displays.

Technical Specifications and Core Functionality

This driver board delivers high-frequency, high-voltage output through a carefully engineered electrical system. Its specifications define its performance envelope and ease of integration into various setups, from benchtop experiments to stage shows.

Power and Electrical Design

The unit operates on a wide input voltage range of AC 110-240V, but is configured for direct use with a 220V power supply. It draws a working current between 0.1A and 2A, supplying an average power of 250W (200VA). A key technical feature is the coaxial cable signal transmission, which helps maintain signal integrity for stable arc generation. The inclusion of a dedicated arc extinguishing isolation device is a critical safety feature, designed to quickly quench the arc when necessary, adding a layer of protection during operation.

Audio Integration and Arc Control

Central to its function as a musical Tesla coil is the 3.5mm audio input port. This allows any standard audio source—such as a smartphone, MP3 player, or computer—to modulate the arc's behaviour. The frequency and amplitude of the input sound directly influence the arc's pulsing, flashing, and branching patterns, creating a direct link between sound and light. The arc length itself is not fixed; it can be adjusted "at will" using the controller's potentiometer, ranging from a minimal discharge up to its maximum capability of over 20 cm, allowing the user to tailor the visual intensity to the environment.

Physical Build and Portability

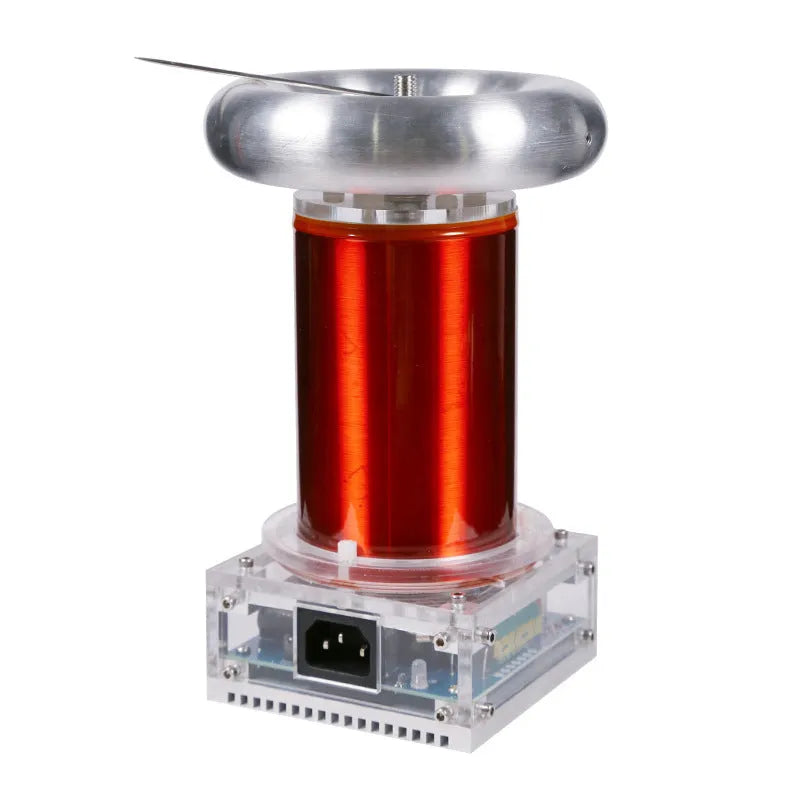

Housed within a compact chassis measuring 100 mm in width, 115 mm in depth, and 205 mm in height, the driver board is designed for strength and ease of transport. Weighing approximately 1 kg, its relatively light yet sturdy construction facilitates movement between different venues, such as from a laboratory to a lecture hall. This small size, coupled with its all-in-one power solution, means the entire demonstration kit can be set up quickly without requiring extensive auxiliary equipment.

Setup, Operation, and Safety Protocols

Correct setup is essential for both achieving the desired visual effects and ensuring safe operation. The product includes specific components and clear guidelines to facilitate this process.

Initial Assembly and Connection

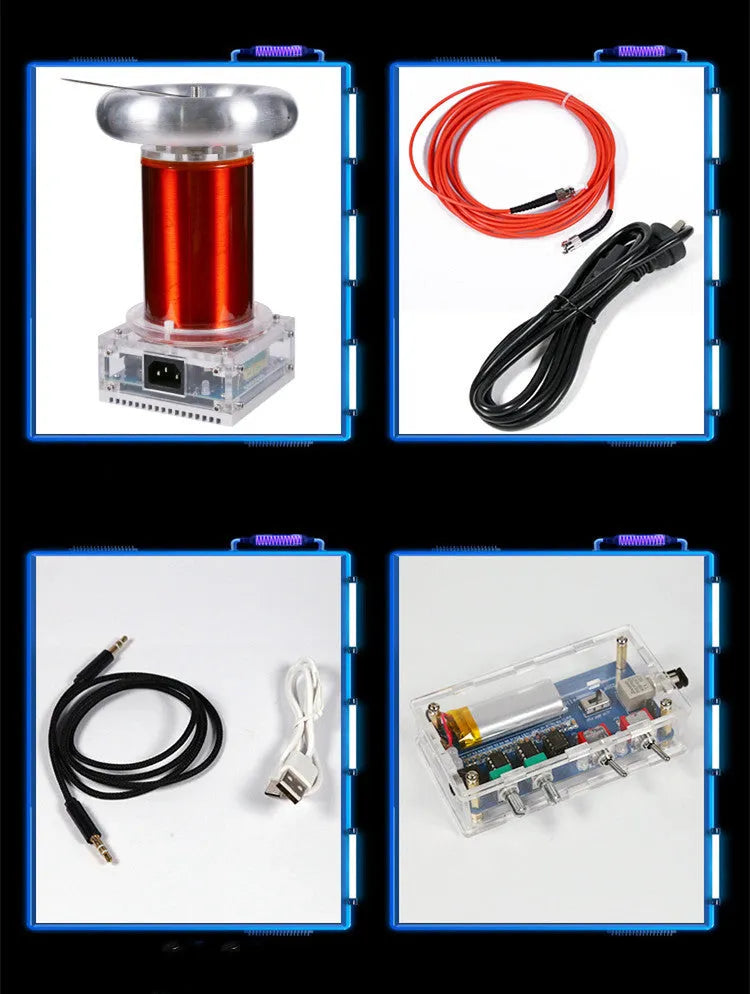

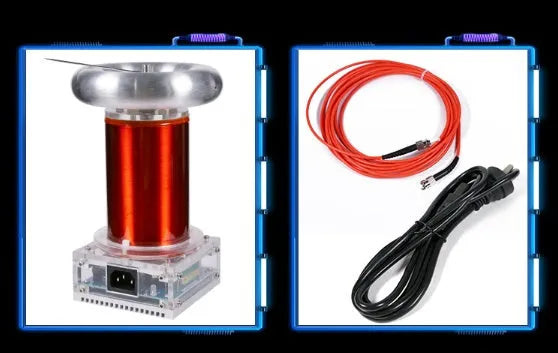

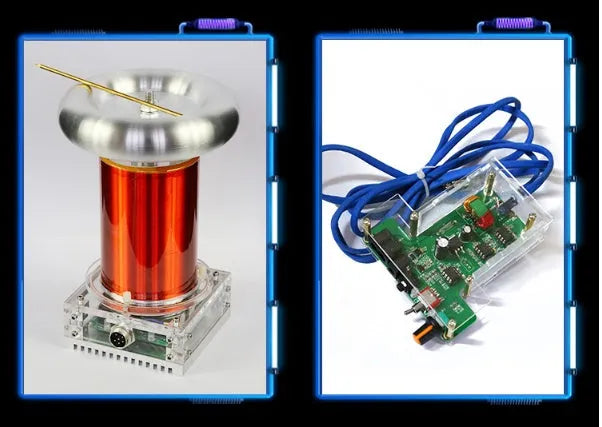

Before first use, the SSTC requires the installation of the supplied thimble onto the pressure equalisation ring at the top of the coil, with the tip extending approximately 2-3 cm out of the ring for optimal arc formation. Connections must be made in a specific sequence: first, the optical fibre is connected between the product body and the controller, noting the alignment of the bump on the connector—it should be rotated gently into place, not forced. Next, the 220V power cable is connected to the host unit and then to the mains socket. Finally, the audio cable is plugged into the 3.5mm port to link the coil to the sound source.

Powering On and Arc Adjustment

To activate the system, first ensure the controller's potentiometer is turned fully counterclockwise to the '0' position, which closes the arc and sets brightness to minimum. Only then should the controller switch be turned on. Arcing is initiated by slowly turning the potentiometer clockwise. This process allows for precise control over the arc's presence and intensity. The unit is designed for intermittent use; recommendations suggest operating the SSTC for 3-5 minutes per session, with music-driven arc modulation limited to 2-3 minutes to maintain component health.

Critical Safety Distances and Handling

Safety is paramount when dealing with high-voltage discharges. It is prohibited to directly touch the coil or the voltage equalisation ring at any time while the product is energised. A minimum safety distance of 0.5 metres must be maintained from these components at all times during operation, with a distance of 1 metre being strongly recommended for observers. These precautions are necessary due to the high-voltage, high-frequency field generated around the active coil.

Practical Applications and User Value

This Tesla coil driver board serves multiple roles, bridging education, entertainment, and technical experimentation with its visually dramatic and scientifically illustrative output.

Educational and Demonstration Use

In academic settings, this unit is a powerful tool for demonstrating principles of electromagnetism, high-frequency alternating current, and plasma physics. The visible, audible, and even olfactory (ozone production) aspects of its operation provide a multi-sensory learning experience. For science centres, museums, or public lectures, its ability to create musical lightning offers a captivating way to engage audiences and explain complex electrical concepts in an accessible and memorable manner.

Home Experimentation and Hobbyist Projects

For electronics hobbyists and makers, this pre-assembled driver board provides a reliable and high-performance core for custom plasma art installations, special effects projects, or advanced experimentation. Its 'plug-and-play' nature, requiring only a 220V socket and an audio source, significantly lowers the barrier to entry compared to building a Tesla coil from scratch. The robust construction and included safety features offer peace of mind for home users setting up controlled demonstrations in workshops or garages.

Inherent Value and Practical Advantages

The primary value of this product lies in its integration and safety-focused design. By incorporating the arc extinguishing device and enabling operation without a physical ground wire, it solves practical problems often encountered with similar high-voltage equipment. Its reusability and low maintenance—requiring only careful handling and adherence to usage time guidelines—make it a durable investment for repeated demonstrations. The complete package, including all necessary cables and controller, ensures the user has everything required to begin creating spectacular electrical displays immediately upon receipt.
